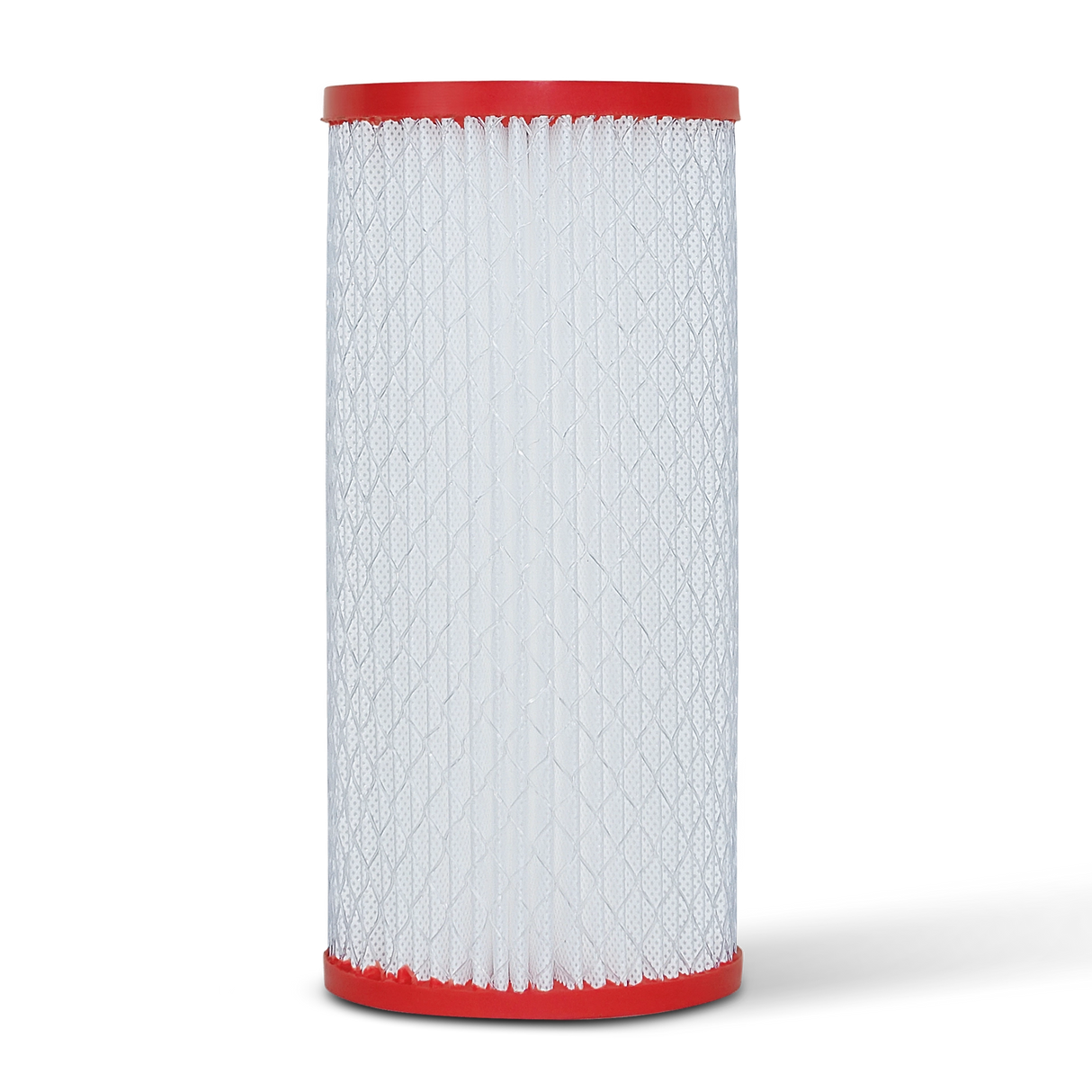

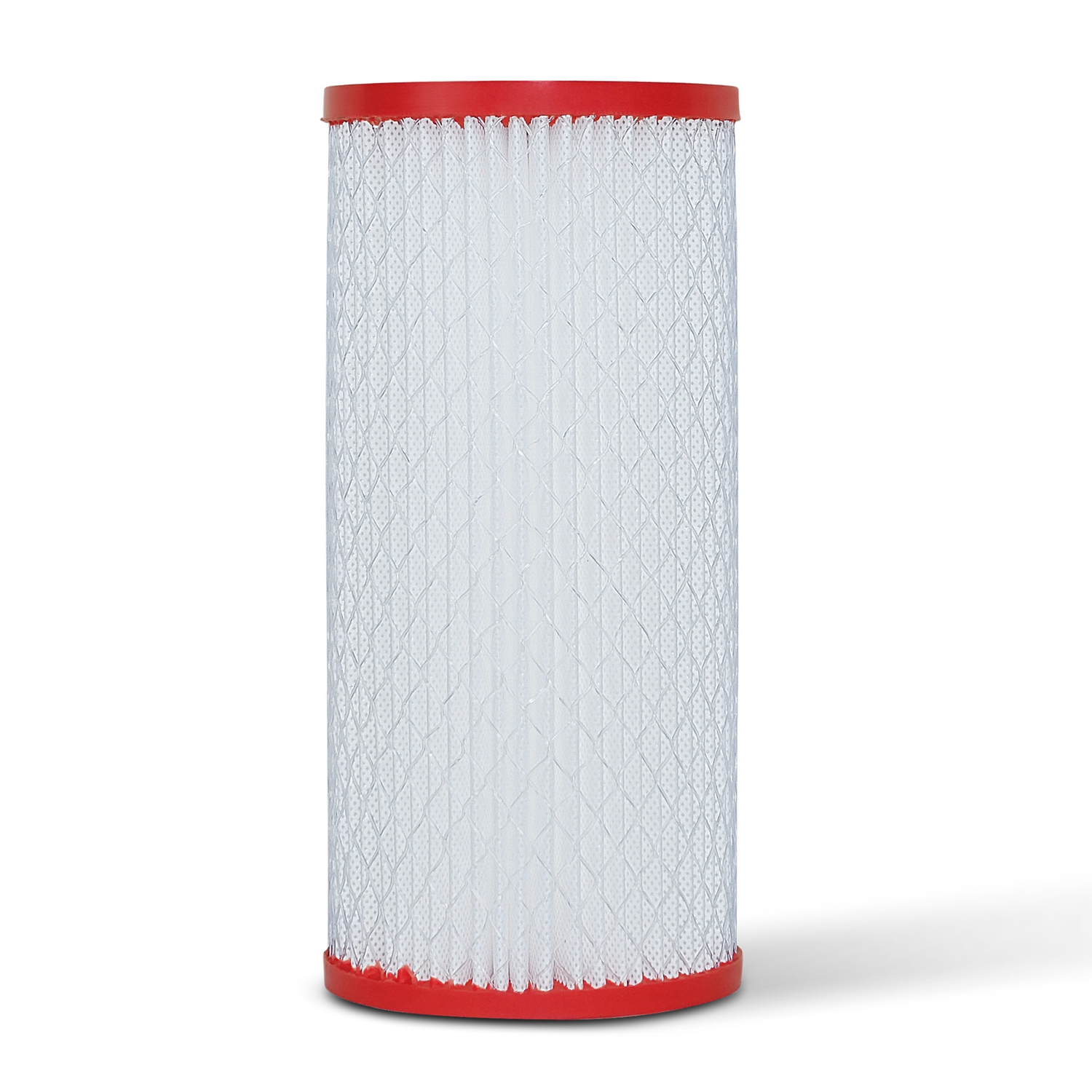

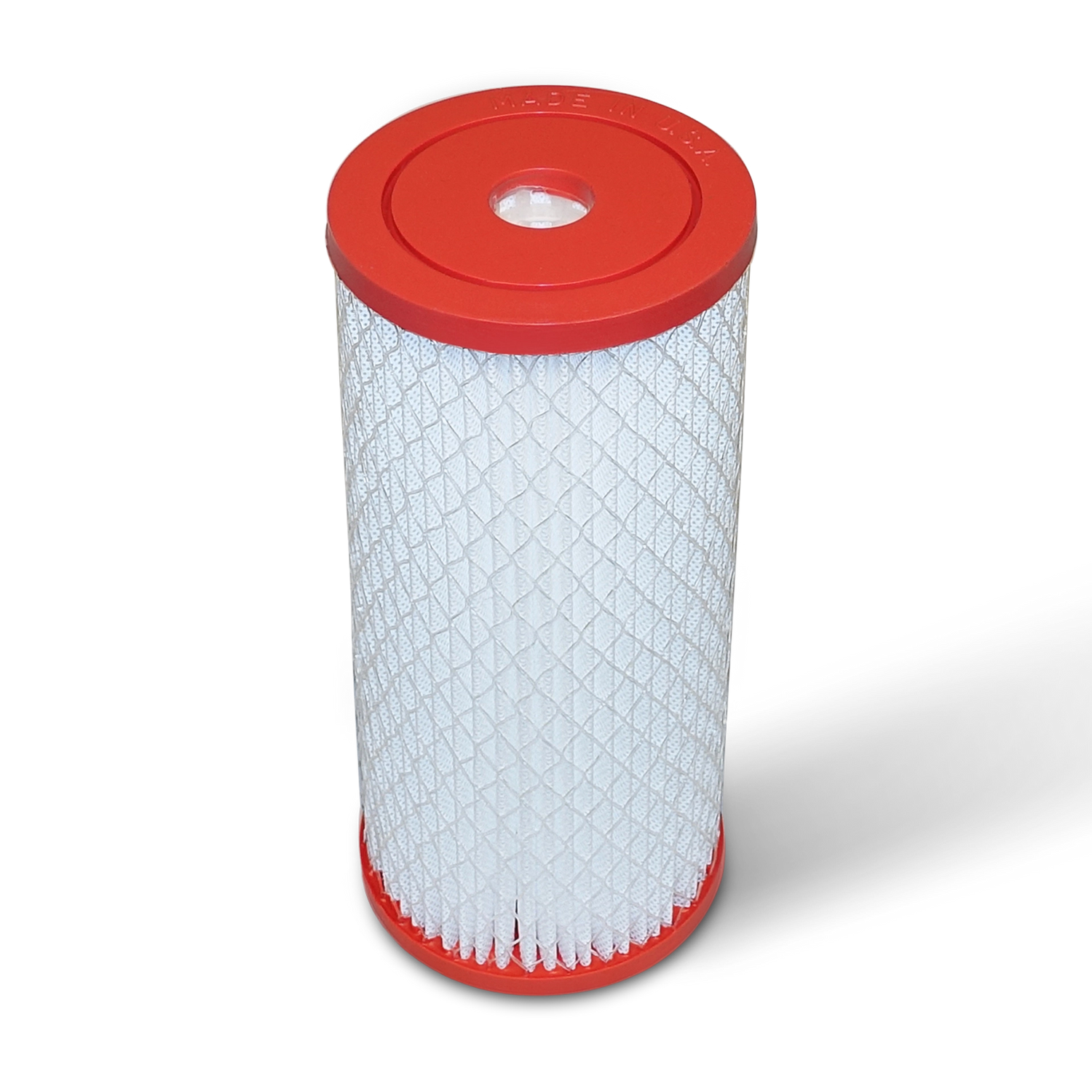

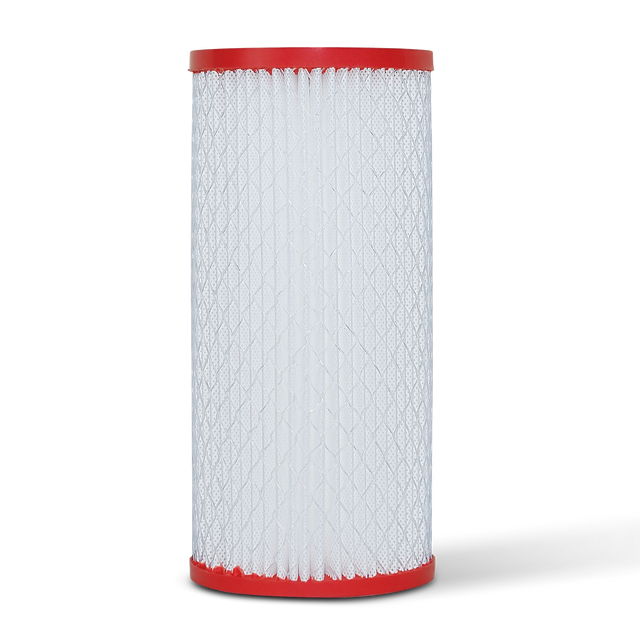

10" x 4.5" High-Flow Submicron Water Filter Cartridge - Pleated Design for Bacteria & Sediment Filtration

Premium BG-10BIVRC Replacement Water Filter

Effective Submicron Filtration for Improved Water Quality

The Premium BG-10BIVRC Replacement Water Filter delivers exceptional water purification through innovative technology and superior design. Compatible with all standard 10" water filter housings, this high-performance cartridge installs effortlessly while providing unmatched filtration capabilities.

Cutting-Edge Nanotechnology Protection

Our filter utilizes proprietary "charged" nanofiber technology at the submicron level to effectively:

• Reduce bacteria and certain biological contaminants
• Help capture cysts and many waterborne particles
• Filter fine particulates at the submicron level
• Provide effective protection against many common water impurities

Efficient Pleated Design for Improved Performance

The BG-10BIVRC's pleated design offers several practical advantages:

• Maximized surface area captures significantly more contaminants
• Dramatically outperforms traditional wound and spun depth filters
• Extends cartridge lifespan for fewer replacements
• Reduces long-term water filtration costs

Easy Installation & Reliable Performance

Simple drop-in replacement compatible with all standard 10" housings

• Consistent flow rate throughout filter lifespan
• Engineered for minimal maintenance

Choose the BG-10BIVRC filter for reliable water filtration at an excellent value point. For even more comprehensive protection, explore our ultrafiltration range of advanced filtration solutions designed for maximum contaminant removal.

Filtration Capabilities

• Pleated filter design engineered to target various waterborne contaminants including bacteria, cysts, and fine particulates
• Submicron filtration helps address common water quality concerns including sediment and certain biological elements

Design Features

• Utilizes charged nanofiber media technology for submicron level filtration
• Zeta potential properties help capture small particles that may pass through conventional filters
• Pleated construction provides greater surface area for improved dirt-holding capacity

Performance Characteristics

• Designed to help protect downstream filtration components by reducing potential biofouling
• Engineered for flow rates of up to 10 gallons per minute
• Low pressure differential of approximately 2 psi under standard operating conditions

Compatibility & Installation

• Standard 10" drop-in cartridge design fits most large-diameter filter housings
• No special tools or modifications required for installation
• Simple maintenance and replacement process

• Size: 10″ L x 4.5″ D
• Flow rate: 10 gallons per minute

Please refer to your unit’s manual for specific instructions. General guidance for replacing a water filter cartridge is as follows:

1. Turn off the water supply: Locate the main water valve. Turn it clockwise to shut off the water supply.

2. Release pressure: Depress the red button on the top of the unit to release pressure.

3. Remove the old cartridge: Place a bucket under the filter housing to catch any water spills. Slide the filter wrench up towards the head and turn it to the left to unscrew the housing. Carefully remove the housing and take out the old filter cartridge.

4. Clean the housing: Wipe the inside of the housing clean.

5. Insert the new cartridge: Place the new filter cartridge into the housing.

6. Lubricate the O-ring: Apply a small amount of lubricant to the O-ring to ensure a good seal.

7. Reassemble the housing: Screw the housing back onto the head by turning it to the right.

8. Turn on the water supply: Turn the main water valve counterclockwise to restore the water supply.

9. Check for leaks: Open a faucet to let the water run and check for any leaks around the housing.
