20" x 4.5" 25 Micron Filter for Jumbo 20" Filter Housings

25 Micron Filter for 3M Aqua Pure AP802, AP802-1.5, Pentek Big Blue 20″ Housings, and all conventional housings that accept 20″ x 4.5″ filters. Fully compatible replacement filter for Aqua Pure AP811-2 (plus, it provides longer filter life!).

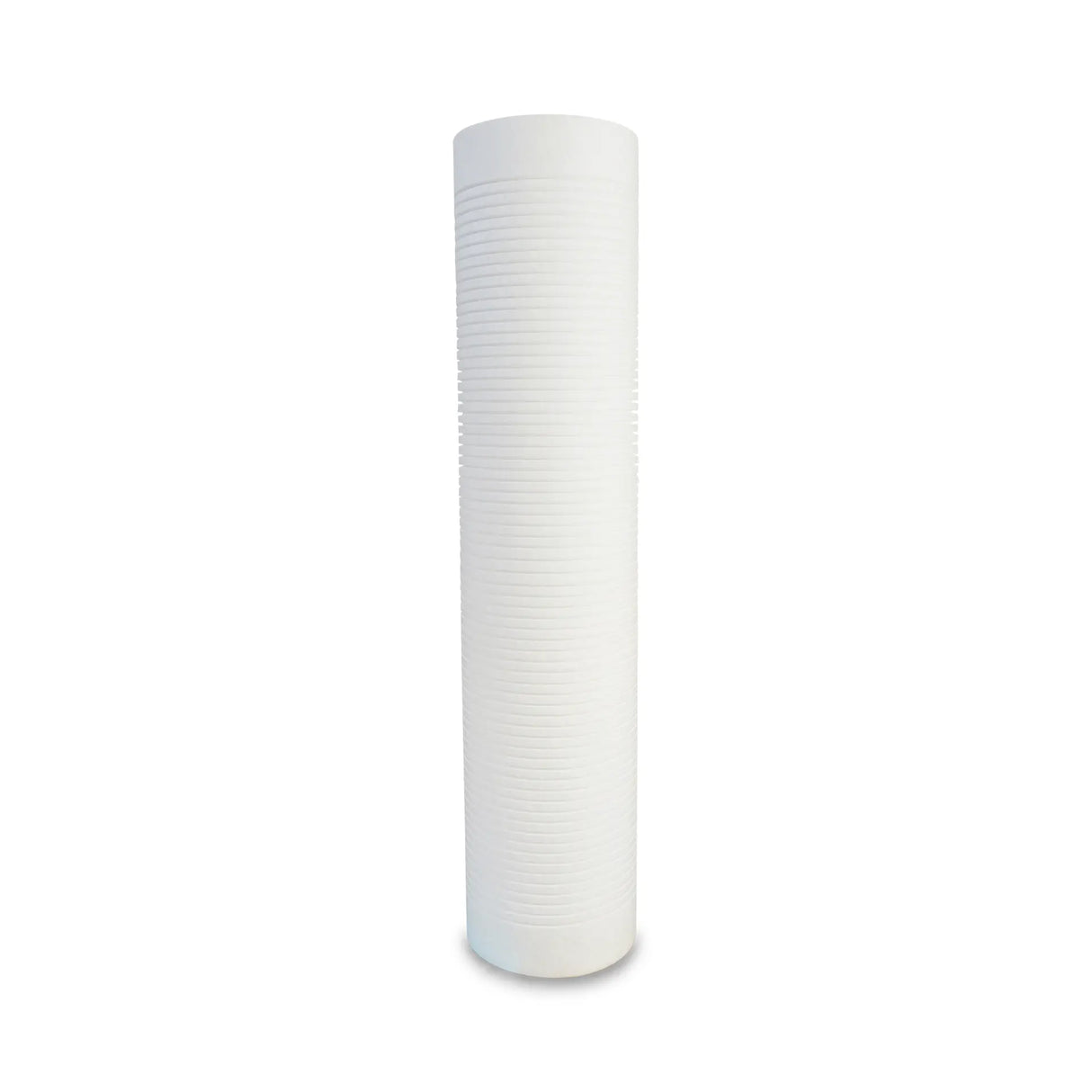

The BG-20SED25 is a fully compatible (and upgraded!) replacement filter for the Aqua Pure AP811-2. It is a large-diameter cartridge that fits 3M Aqua Pure AP802 / AP802-1.5, Pentair Pentek Big Blue 20″ housings, and all conventional water filter housings that accept 20″ x 4.5″ filters. The BG-20SED25 is a nominal 25 micron filter that removes particulate impurities and rust from drinking water. This filters’ rigid construction and grooves provide nearly twice the life of its closest competitor (and over 10 times more life than some other filters on the market!).

• Deep ridges are industrial grade construction that withstand stressful conditions.
• Its rigid construction helps prevent collapse under all water pressure conditions and eliminates sediment “unloading” due to variances in water pressure.
• This filter provides nearly twice the life of its closest competitor (and over 10 times more life than some other filters on the market!)
• Grooved design increases surface area and extends the water filter cartridge life
• Provides fine sediment filtration down to 25 microns for cleaner, clearer water
• Captures and retains sediment from your water efficiently
• Exceptional dirt-holding capacity
• Provides a sufficient supply of purified water throughout the day with its impressive flow rate (40 gallons per minute)
• Standard 4.5″ diameter drop-in cartridge that fits all conventional water filter housings that accept 20″ x 4.5″ filters
• Ideal for light commercial applications, and large homes (2.5 baths)

• Micron rating: 25 Micron
• Flow Rate: 40 gallons per minute
• Size 4.5″ D X 20″ L

Please refer to your units’ manual for replacement cartridge installation instructions, but as a general guideline, the installation instructions below are applicable for most whole house units including the Aqua Pure AP802

1. Turn off incoming water by isolating unit with existing valves on water distribution system.
2. Bleed pressure from the unit by depressing the red button on the top of the unit.
3. Remove housing by sliding wrench up towards head then turn left to unscrew.
4. Wipe housing clean and insert BG-20SED.
5. Lubricate o-ring and screw housing head.
6. Turn water back on.

Fits all standard large diameter (4.5 inch) 20″ water filter housings including:

3M Aqua Pure filter housing: Aqua Pure AP802 series (55857-04, 55857-19, 56189-03, and 56189-05)

American Plumber water filter housing: W2010-PR (152015), W2015-PR (152017)

Hydronix water filter housing: Hydronix HF45 series

Noritz: Noritz tankless water heater filter H2F, Noritz water filter CH2F

Pentek Big Blue filter housing (Ametek water filter housing): 150467, 150233, 150234, 150235, 150236, and 166201.

Premiere: All BG-20 series housings including BG-20SF, BG-20F5SED, BG-20C, and BG-20BIV

Fully-compatible, upgraded replacement water filter cartridge for the following:

3M Aqua Pure water filters: Aqua Pure AP810-2 (56189-03), AP811-2 (56189-5)

American Plumber water filter: W20CLHD20 (155305-51)

GE water filters: GE FXHSC & GE water filer GXWH35F

Noritz water filter: H2F-C

Pentek water filters: Pentek S1 Series S1-20BB (155305-43) ; Pentek ECP Series ECP1-20BB (255493-43) ECP5-20BB (255494-43),  ECP20-20BB (255495-43), ECP50-20BB (255496-43) ; Pentek R series R30-20BB (155430-43) ; Pentek DGD Series DGD-2501-20 (155360-43), DGD-5005-20 (155358-43), DGD-7525-20 (155356-43) ; Pentek WP-BB Series WP1BB20P (355222-43), WP5BB20P (355223-43), WP25BB20P (355225-43) ; Pentek WPX-BB Series WPX100BB20P (355226-43).

Premiere Sales has a proven track record for heavy duty water filtration products. We provide dependable, upgraded replacement cartridges that perform as well – if not better – than their brand name counterparts.
