84 GPM Boiler Water Treatment System with Scale Inhibitor Filters

Multi-Cartridge Stainless Steel Boiler Treatment System With Four Premiere AMF-SDR530 30″ Sediment Filters with Scale inhibitor.

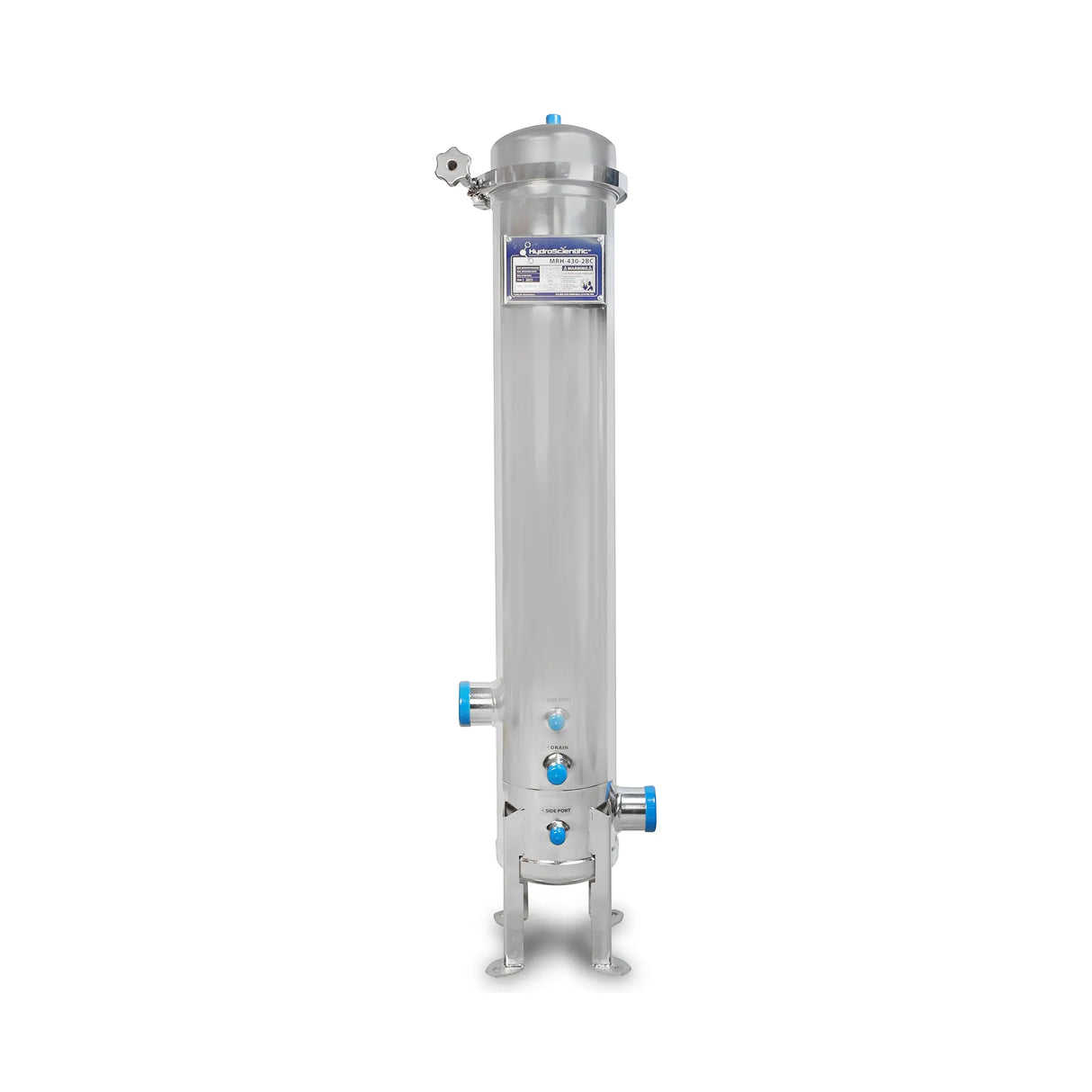

The Premiere SS430 is a heavy-duty stainless steel multi-cartridge vessel containing four (4) 30″ sediment filters with scale inhibitor. With a high flow rate of up to 84 gallons per minute, this system is ideal for industrial and commercial applications including boilers. This included filter cartridges contain Siliphos ® scale control product which prevents scale and stops corrosion. It works by forming a thin protective layer on the metal surface to inhibit the deposition of scale and corrosion.

This system is for hot or cold applications, and can be used for both chlorinated (municipal) and non-chlorinated (well water) systems. Don’t risk failure or flood damage with a low-cost, plastic water filter housing that could burst. This system is high quality 304 stainless steel construction that provides maximum durability and is resilient to corrosive substances and chemicals.

• Heavy-duty, 304 stainless steel
• Electropolished on the inside and out – see additional benefits below
• Entire housing is machine welded
• Legs included at no extra cost
• Band clamp design for easy & fast cartridge change outs, secure sealing, and safe operation
• Two built-in gauge ports on inlet and outlet – easily read incoming and outgoing pressure to know when it’s time to change filters
• One 3/4″ MPT drain opening at bottom of housing for easy flushing and cleaning
• Delivers an impressive, unrestricted flow rate of up to up to 84 gallons per minute which is a sufficient supply of filtered water for  large homes and commercial applications – especially boilers and hot water heating systems
• Can hold four (4) 2.5″ D x 30″ L double open-ended (DOE) style filter cartridges – 4 x AMF-SDR530 scale inhibitor cartridges are included
• Knife edge seals eliminate bypass on DOE cartridges
• The competition charges for premium features like legs and an electropolished finish – legs and electropolished finish come standard with this system at no additional cost.
• Provides tremendous capacity to remove and/or reduce sediment and scale that may be present in your water
• Significantly reduces hardness build up due to minerals present in the water supply
• For hot or cold water use
• Can be used for chlorinated (municipal) or non-chlorinated (well water) systems
• 2″ FNPT connections assist in maximum flow rate with minimum pressure drop
• Optional: two (2) pressure gauges included which easily screw into the system

Benefits of AMF-SDR530 scale inhibitor cartridges

• Premium 5 micron water filter cartridge with scale inhibitor to protect your heat exchanger and avoid tank failure
• Siliphos ® scale control product prevents scale and stops corrosion. It works by forming a thin protective layer on the metal surface to inhibit the deposition of scale and corrosion on your tankless water heater
• Rigid construction with 102 deep grooves. The deep grooves increase surface area, enhance contaminant holding capacity, and promote fuller utilization of the depth-matrix for fewer cartridge change outs
• Reduces unloading at high differential pressure
• Made without adhesives, binders, surfactants or lubricants for compatibility in a wide range of applications and operating conditions
• The differences between our tankless water heater filter cartridge and other suppliers is the 5 micron absolute rating, deep grooves, and use of the most effective scale control formula. Don’t settle for inferior cartridges with no track record!

Benefits of electropolished 304 stainless steel

• Maximum tarnish and corrosion resistance
• Surface is easy to clean – reduced cleaning time by more than 50 percent!
• Less bacteria growth
• Microscopic smoothness
• Bright, highly reflective finish
• Substances are less likely to adhere to the surface (cake-on)
• Less friction and surface drag

The 304 stainless steel housing provides maximum durability and is resilient to corrosive substances and chemicals. Enjoy peace of mind against the risk of failure and flood damage. A stainless steel water filter housing is the preferred choice for many applications due to its durability and extended life compared to plastic housings. Don’t be tricked by fiberglass, resin, or plastic housings that may only have a “stainless steel wrapper” which is for looks and doesn’t provide any structural integrity. Fiberglass, resin, and plastic housings may also leach into your water.

• Port connections (In/Out): 2″ FNPT
• Drain connections: 3/4″ MNPT
• Gauge port connections: 1/4″ FNPT
• Maximum flow rate: 84 gallons per minute (cartridge dependent)
• Number of cartridges: 4 x 30″ cartridges (includes four Premiere AMF-SDR530 cartridges)
• All options include 304 stainless steel filter housing and four (4) AMF-SDR530 cartridges; two (2) pressure gauges are optional

This water filter system can be installed by a local licensed plumbing professional or by individuals with DIY skills. For detailed guidance, please refer to the installation instructions. Contact us if you have any questions.

SS430 Installation Instructions
