20" Filter Housing Stainless Steel (Pentek Big Blue Filter Housing Style)

Stainless Steel Filter Housing for 20″ x 4.5″ Cartridges (Pentek Big Blue 20 inch Style)

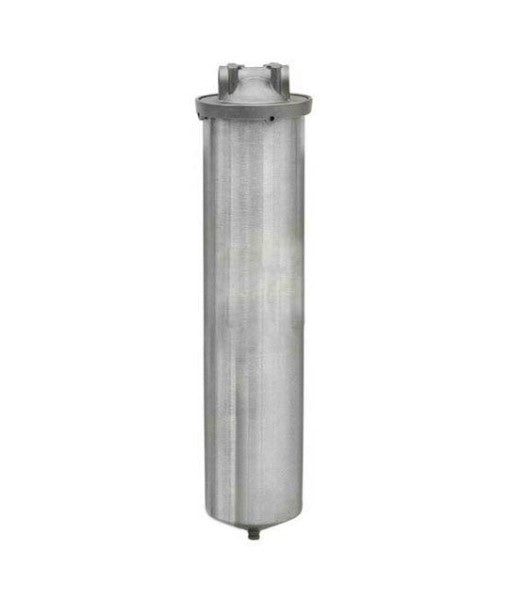

The Premiere PS-SS20 jumbo stainless steel filter housing is made from high quality 316L stainless steel. It’s an upgraded alternative to the plastic 20 inch Big Blue filter housings: stainless steel is far less likely than plastic to burst causing flood damage. 316L stainless steel is exceptionally tough and built to withstand stressful conditions. Flow rate of up to 40 gallons per minute (cartridge dependent) makes it great for residential and commercial applications. This filter housing will accept any standard size double open ended style cartridge that is roughly 20″ tall by 4.5″diameter.

• Heavy duty water filter housing constructed of 316L stainless steel
• Corrosion resistant and built to withstand stressful conditions – 316L stainless steel is more corrosion resistant and stronger at elevated temperatures than 316 and 304 stainless steel
• 316L stainless steel provides peace of mind against the risk of failure and flood damage that can occur with plastic housings, including 20 inch Big Blue housings
• 1” pipe connection provides unrestricted, high flow rates with minimal pressure drop
• Up to 40 gallons per minute flow rate (cartridge dependent)
• Great for use in residential, light commercial, and industrial applications. Also suitable for treatment of industrial fluids
• For hot or cold water use – can withstand temperatures up to 250 degrees Fahrenheit (check your cartridge specifications)
• Can use with chlorinated (municipal) or non-chlorinated (well water) water supplies (check your cartridge specifications)
• Maximum pressure of up to 150 psi (check your cartridge specifications)
• Accepts double open ended style cartridges (≈ 4.5″ diameter x ≈ 20″ height) – a built-in spring accommodates various cartridge lengths
• Drain opening at bottom of housing for easy flushing and cleaning
• Positive cartridge sealing with “sure seal” ring nut connector and tightening tool
• Economical to maintain this stainless steel whole house water filter
• Includes housing, mounting bracket, screws, and wrench pin. This system does not include the filters
• 10 year warranty on filter housing
• This stainless steel filter housing is great for residential uses such as as a whole house water filter or point of entry water filter, or for industrial filtration applications for food, beverage, bottled water, rainwater harvesting & reuse, pharmaceutical, cosmetics, personal care, micro electronics, power generation, inks, paints, coatings, and more

• Size 25″ height x 5.75″ diameter
• Pipe connections: 1″ FPT (female pipe thread)
• Flow Rate: up to 40 gallons per minute (cartridge dependent)
• Maximum 150 psi rated
• Maximum temperature 210°F
• 10 year warranty on housing

This water filter system can be installed by a local, licensed plumber, or by individuals with DIY skills. For detailed instructions, please refer to the installation instructions and diagram. Contact us if you have any questions.

PS-SS20 Installation Instructions

PS-SS20 Installation Diagram
